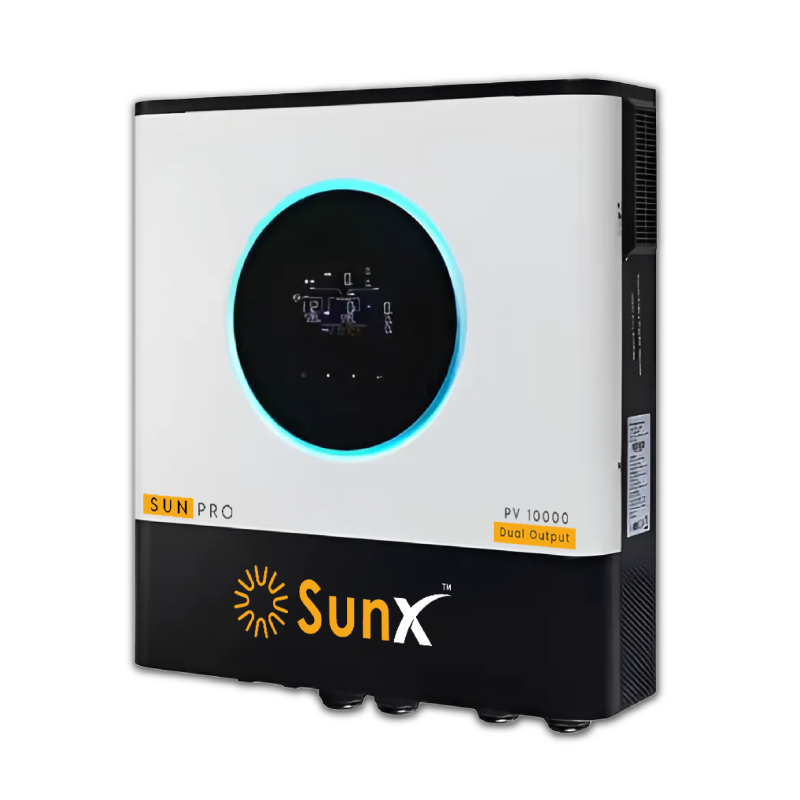

Sun-Pro 8kW | PV 10000 Hybrid Solar Inverter

The Sun-Pro 8kW Hybrid Solar Inverter delivers powerful and intelligent energy management for medium to large-scale residential or commercial solar installations. With a rated output of 8000W and support for up to 10,000W PV array input, it ensures optimized solar energy utilization and seamless hybrid system integration.

Designed with versatility in mind, it features dual AC input/output capability, a built-in DC output for small DC loads, and a configurable AC/PV priority timer. Its battery-independent design provides flexibility for systems without storage, while a replaceable cooling fan ensures easy maintenance over time.

Packed with modern conveniences such as RGB status lighting, 4.3” touch display, WiFi connectivity, USB On-the-Go, and multiple communication ports, the Sun-Pro 8kW is built for easy operation, monitoring, and long-term performance.

Key Features

• Rated Power: 8000VA / 8000W
  Robust power output suitable for heavy residential or small commercial loads.

• Dual Independent AC Power Inputs
  Supports automatic switching for stable and uninterrupted power delivery.

• Wide MPPT Range: 90–450VDC (Input Operation 120–500VDC)
  Flexible PV array design with high efficiency across a wide voltage range.

• High PV Input Current: 27A
  Capable of handling large PV arrays with high current modules.

• Built-in DC Output
  Supports direct power for low-voltage DC appliances (e.g., fans, LED lights, routers).

• Battery-Independent Operation
  Fully functional even without connected batteries.

• Configurable AC/PV Output Priority
  Schedule and prioritize energy sources to match usage patterns.

• Touchscreen Display & RGB LED Ring
  4.3” color LCD with touchable button and multi-color status indication ring.

• Built-in WiFi for Mobile Monitoring
  Android/iOS app support for real-time system tracking and control.

• USB On-the-Go Functionality
  Allows firmware updates and data export via USB.

• Replaceable Cooling Fan
  Ensures ease of maintenance and longevity of operation.

• Advanced Protection Features
  Optional GFCI, AFCI, and Rapid Shutdown supported for improved safety.

Technical Specifications

Model

• Sun-Pro 8kW

Rated Output

• Power: 8000VA / 8000W

• Surge Power: 16000VA

• Waveform: Pure Sine Wave

• Transfer Time:

  • 10 ms (Personal Computers)

  • 20 ms (Home Appliances)

• Efficiency (Peak): 90% – 93%

AC Input

• Voltage: 230 VAC

• Selectable Input Range:

  • 90–280 VAC (Home Appliances)

  • 170–280 VAC (Personal Computers)

• Frequency Range: 50Hz / 60Hz (Auto Sensing)

Battery

• Battery Voltage: 48 VDC

• Floating Charge Voltage: 54 VDC

• Overcharge Protection: 66 VDC

• Battery-Free Operation: Supported

Solar Charger & AC Charger

• Charger Type: MPPT

• Maximum PV Array Power: 10000W

• MPPT Operating Range: 90 – 450 VDC

• PV Operation Range: 120 – 500 VDC

• Maximum PV Input Current: 27A

• Maximum Solar Charge Current: 120A

• Maximum AC Charge Current: 150A

• Maximum Combined Charge Current: 150A

Physical Specifications

• Dimensions (D x W x H): 147 x 432.5 x 553.6 mm

• Net Weight: 18.4 kg

• Cooling: Smart fan (replaceable)

• Display: 4.3” Color LCD with touchable interface

• Status Indicator: RGB LED ring

Communication Interfaces

• Ports: USB, RS232, RS485, WiFi, Dry-contact, BTS

• External Current Sensor Port: Yes (Built-in)

• USB OTG Support: Yes

• BMS Communication: Reserved CAN/RS485/RS232

Environmental

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -15°C to 60°C

• Humidity: 5% – 95% (non-condensing)

Certifications & Compliance

• Safety Certification: CE

• Optional Protection Features:

  • GFCI (Ground Fault Circuit Interruption)

  • AFCI (Arc Fault Circuit Interruption)

  • Rapid Shutdown

Parallel Capability

• Supports Up to 6 Units in Parallel
  Expandable system design for higher load capacity or redundancy.
