Smart Management
- Advanced MPPT technology
- Dual output support with smart load management
SunX Ultra Series
Sun Ultra Series

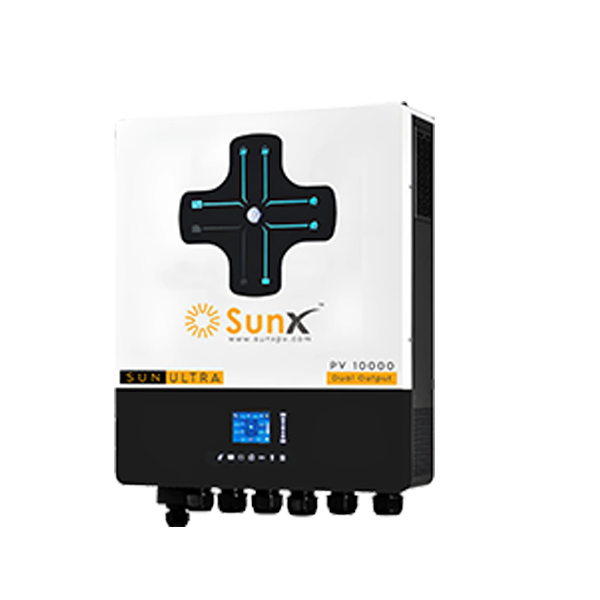

8kW | 10kW Dual Output Hybrid Inverter
- Dual output support with smart load management
- Two independent AC power sources
- Built-in current transformer sensor
- Wi-Fi module for mobile monitoring
- Parallel operation up to 6 units
Product Advantage
Power that works intelligently
The Sun Ultra series delivers versatile dual output hybrid inverter technology with smart load management and advanced safety features. Featuring 93% efficiency, pure sine wave output, and built-in Wi-Fi monitoring, it is designed for residential and commercial energy applications requiring reliable power management.
Discuss your projectHigh Performance
- Pure sine wave output
- Two independent AC power sources
Assured Reliability
- 10ms computer transfer time
- Built-in current transformer sensor
Flexible Adaptability
- USB, RS232, RS485 and Wi-Fi
- Wi-Fi module for mobile monitoring
Product Parameters
Technical specifications
Select a model to compare its main power, charging, battery, and operating details.
01Solar & MPPT+
PV array power10000 W
MPPT range90–450 VDC
02Output & Performance+
Rated power8000 W
Surge power16000 VA
Efficiency93%
Transfer time10ms PC / 20ms home
03Battery & Charging+
Battery voltage48 VDC
Maximum charge current150 A
04Physical & Operating+
Dimensions145 × 348 × 553.6 mm
Net weight18.4 kg
Technical Resources / SunX Ultra Series
Data Download
Sun Ultra Series documents datasheets, brochures, warranty information, and technical support in one place.
PDFSun-Ultra Series Datasheet
Complete model specifications, safety features, communication options, and installation data.
English · Official PDFPDFSun-Ultra Product Brochure
A concise visual guide to Ultra Series capabilities and recommended applications.
Digital brochure · PDF03Warranty & Service Coverage
Review product coverage, service support, and warranty guidance before installation.
